12x16 Barn w/Side Porch and Nice Loft Plans

12'x16' Barn With Porch and Huge Loft Shed Plans

Start Building This Shed Today!

These plans are a digital pdf download that you will receive immediately via email upon purchasing.
Building guide
Materials list
Email Support
Free Cupola Plans

Your shed plan download includes:

Elevation Views
Isometric Framing View

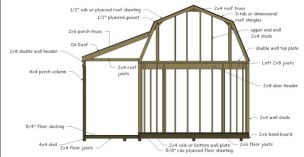

Building Section
Floor Plan
Floor Layout
Floor Anchors
Front Wall Framing
Right Wall Framing
Left Wall Framing
Back Wall Framing
Truss Construction
Main Roof Framing
Porch Supports and Header
Porch Rafter Detail
Porch Roof Construction
Roof Sheeting Layout
Loft Construction
Entry Door Construction
Trim and Side Overhang Detail
Sample Ramp Construction
Window Framing Example
Common Nails Table
Shelf Building Example

Details for this 12x16 Barn shed with porch...

Barn style shed roof.
12' wide, 16' long, and 14' 8 3/8" tall (ground to roof peak) with 6' wide x 16' long side porch. This makes the dimensions across the front 18' wide, and 16' deep from the front to the back.

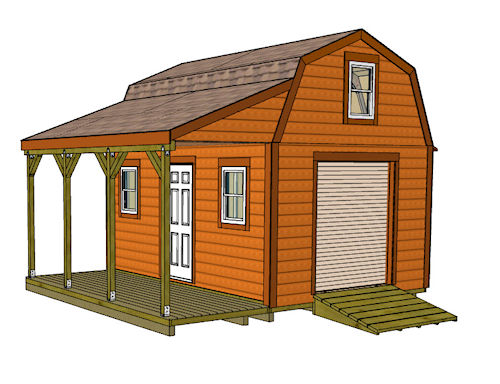

6' wide by 7' tall roll up shed door on 12' end wall.
35" by 6'9" tall pre-made shed door on wall leading out onto the porch.
7'10" interior wall height.
Option to frame loft any way you want.
5' 6" loft height off loft floor to inside roof peak.
Wooden floor framing for main shed with 2x6 treated floor joists 12" on center.
Porch floor framing with 2x6 treated floor joists 16" on center.
2x4 wall framing 16" on center
2x4 truss construction spaced 24" on center
Plans show LP 1/2" Smartside siding panels however you may use siding of your choice. If you prefer to go with lap siding you will have to sheet the walls first with 1/2" osb
6' wide shed ramp in front of the 6' roll up shed door on 12' end wall.
Use cedar trim, pvc trim, or trim of your choice. Plans show cedar trim on roof, doors, and corners.

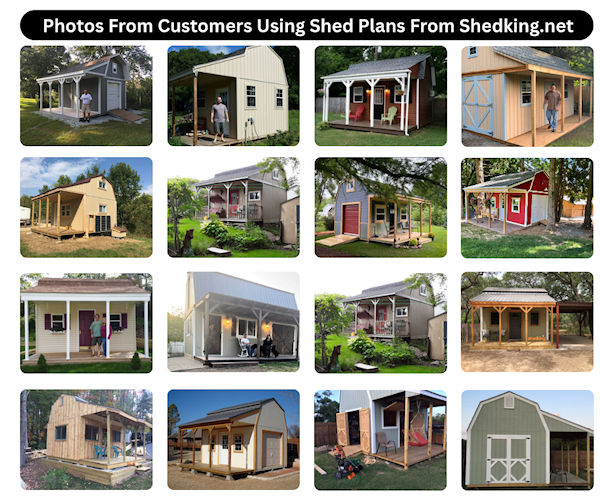

Customer Feedback

Brians 12x16 Barn w/porch

Brian used my 12x16 barn shed with porch plans to build this really cool looking shed. Here's what Brian emailed me about his project:

"Thank you, John, very much appreciated. I'll see if I can find the pics of the build for you. As I said, the ceiling was lowered by a foot which gives headspace upstairs and storage space was made above the porch.

We use it downstairs for a hobby room and, in the winter I bring in my vintage '69 BSA A65 for any work that needs doing.

I often look at it and think with a bit of modification to comply with municipal rules, it would make a great guesthouse or even a backyard rental which is now legal in our area.

And that porch? Well, in the hot weather a cool breeze comes up through the woods from the lake and you could, and we do, sit there all day!"

all the best

Brian

Jack's Meat Smoker Shed

"I loved the plan and was able to update it to my own specs. I added to the roof line and had trusses made accordingly. I prepared the site with concrete slab and my barn is probably more "fancy" than what the plans might normally be.

I blogged about it on my blog with all the information on planning, my parameters, my helpers, my budget and more (https://www.jacksblend.com/how-to-build-an-awesome-smoker-shed/).

Thank you so much to Shedking for the plans. They were awesome and exactly what I needed to create my project. I hope this helps/inspires others to do the same."

The Gray's Backyard Guest House

"My wife & I put a lot of time and effort into the build which gave us great pride in our achievement, this was for sure much easier with your plans and manuals you provide with the offer. We competed this shed with a small kitchenette, bathroom with full shower, a staircase that leads up to a king bed in the loft. Many items I custom made for sizing options that were not available as a commercial purchase such as the kitchen counter and the small bathroom vanity, along with the bathroom barn door as well.

This is a fully functional shed/house with on-demand water heater, air conditioner (a must in south Texas), complete bathroom facilities including an exhaust fan for those nature needs in a small area! LOL! I was fortunate to have an older meter loop from a past existing home as well as a septic ystem which I was able to use for the project, otherwise I couldn't have made it happen in the time we completed it.

All in all the wife and I enjoyed the time to work together and I could not have accomplished such a task without her bountiful help, also her father provided many days of pure grunt work with all the lifting and holding frames in place.

Thanks again for your wonderful plans and guides!"

Rodney and Carey

Roger's 12x16 Barn With Porch Shed

"My Roger is 87yrs old and retired just last month! Now he spends his days doing what he loves... building our shed!"

Below is a montage of pictures of Roger's shed build:

What you can build with these 12x16 barn plans with 6' side porch:

You can use these 12x16 barn with porch shed plans to build a shed house, work space such as a workshop shed, home office, storage shed, shed home, tiny house, small cabin or cottage, music studio and more!

The plans are easy to use, easy to understand and come with links to download the building guide, materials list, and you also get email support for any questions you might have about building this neat shed.

Also coming with your download are free cupola plans.

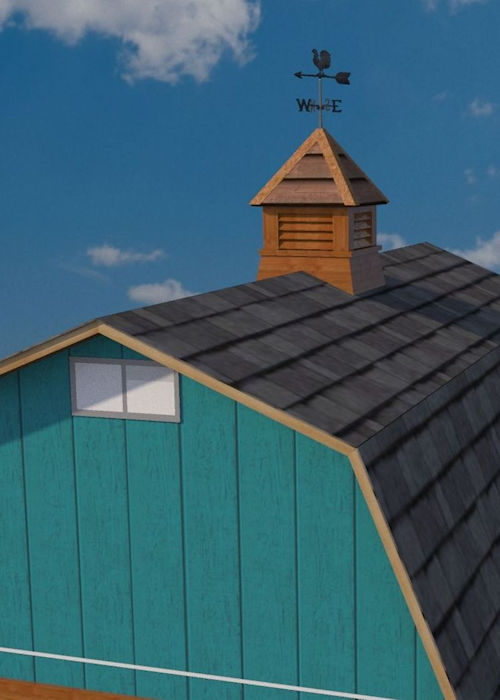

Free Cupola Plan With Your Purchase!

View This Shed With Interactive 3D Below...

12x16 Barn with Side Porch by shedking on Sketchfab

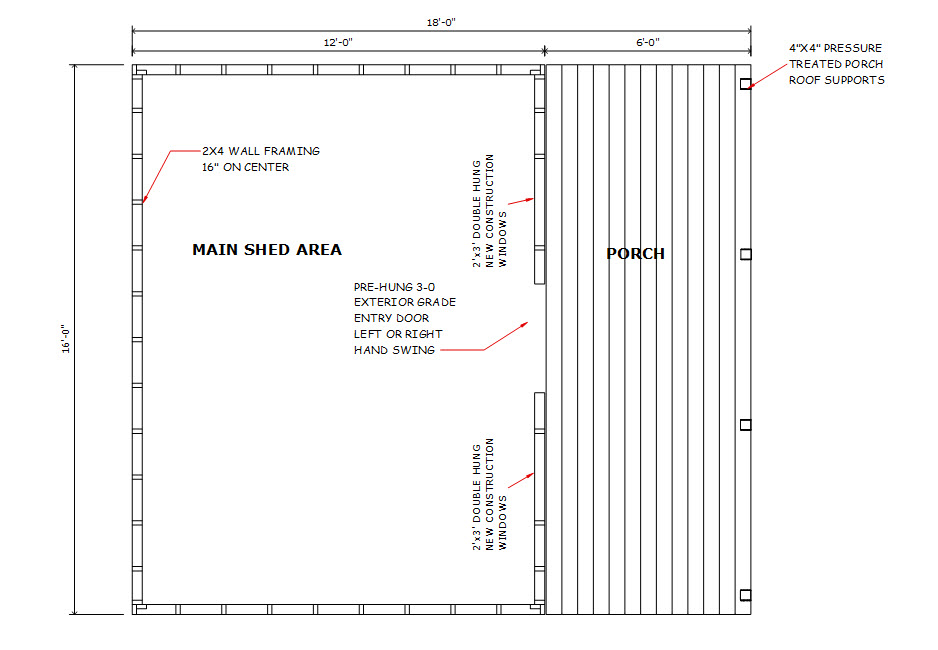

Here's the floor plan for this shed..

12x16 Barn with 6' Side Porch

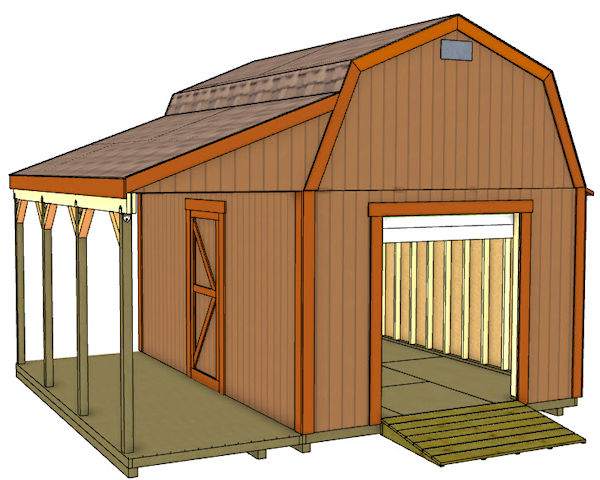

Beautiful 12x16 Barn with Side Porch Plans

This barn has a 6' wide by 16' long porch that you can use for any number of purposes like storing firewood or just setting up a few chairs and lounging and taking it easy. Porch construction is easily built on the opposite side if you prefer.

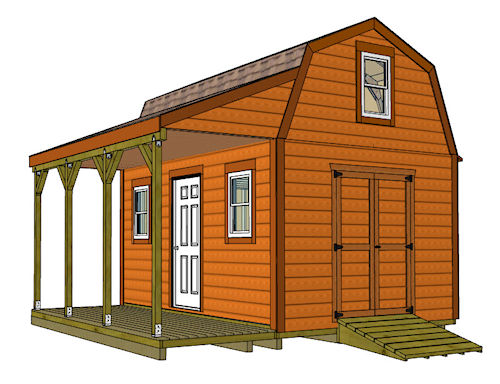

You have the option of going with a nice 6' roll up shed door or building a set of double shed doors instead. The side with the porch on it has an entry door that is about 36" wide but can be framed to your specs.

Plans also come with instructions on how to do framing for adding windows wherever you might want some extra light coming in.

A nice big loft in this 12x16 barn with porch

I have even included plans for adding a nice loft for all that extra storage you may need up in the ceiling area which is very roomy indeed with a loft floor to ceiling height over 5.5'. And this loft can be expanded to whatever length you need. 8' is shown in the plans.

Customer submitted photo 12x16 Barn with Porch Shed Plans With a Nice Big Loft

Sparks built this neat shed using my 12x16 barn with porch shed plans.

A Neat Shed Built Using These 12x16 Barn with Porch Plans

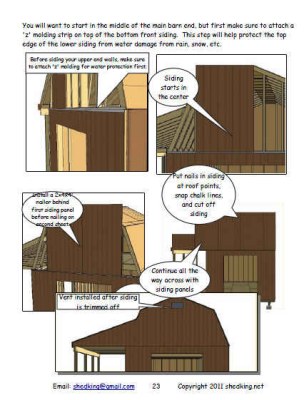

Construction Guide and Materials List

On the first page of your plan download there are links to download the construction guide and materials list. You can download the free construction guide for building this shed here:

12x16 Barn with side porch construction building guide.

The construction guide lists the following:

Barn Foundation Detail and Floor Anchors

Framing Your Barn floor

Building Your Barn Walls

Framing for Doors

Building Your Doors

Framing your Barn Roof

The Finishing Touches

Shingles, trim, paint.

Extras – adding Ramps, and Window Framing

Materials List:

The materials list shows both quantities for each building phase and totals for shopping at your favorite lumber supplier. Download the materials list.
