12x16 Home Office Shed Plans

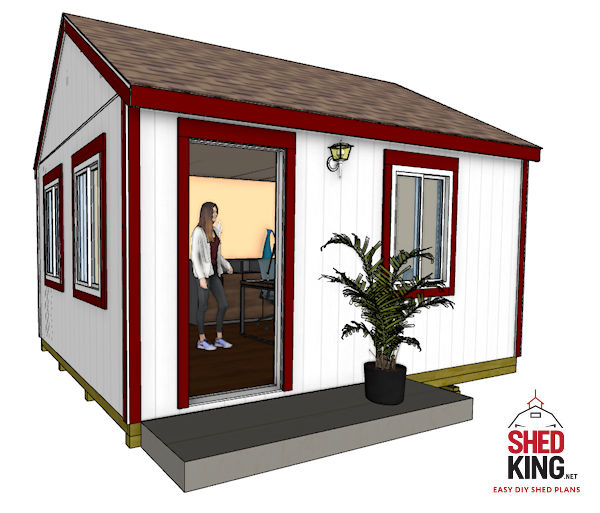

12x16 home office shed plans 600

Start Building Today!

Purchase For $19.95

This is an immediate digital download in 8.5"x11" pdf file format and includes:

  • 30 Day Money Back Guarantee
  • 24 Pages of Building Blueprints
  • 61 Page Gable Building Guide
  • Materials List
  • Free Cupola Plans
  • Email Support for Questions

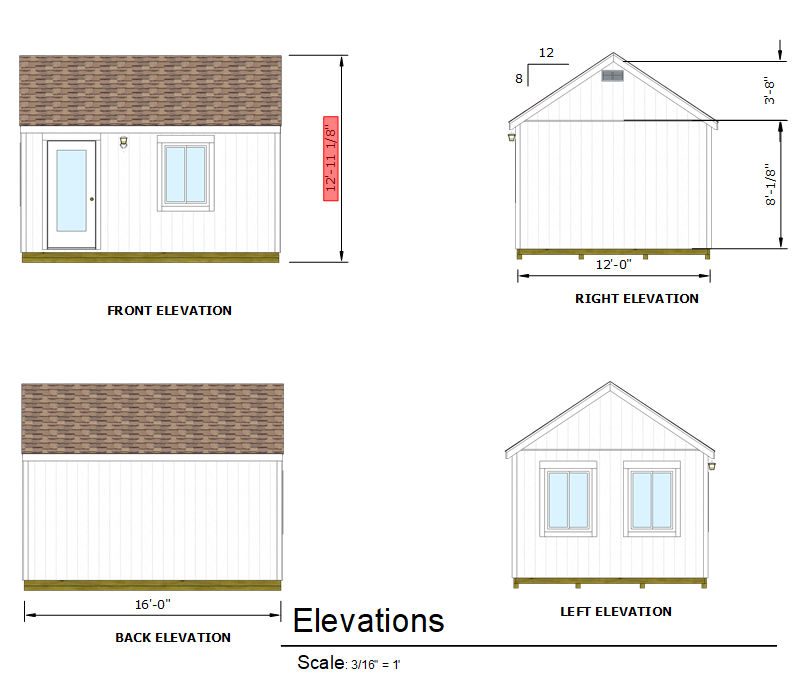

12x16 office shed plans elevations 830

Check out the features of this 12x16 Office Shed


12' wide x 16' long x 12' 11" high

Shed Floor

  • Treated 2x6's spaced 16" on center with 4 -4"x4" pressure treated support skids.
  • Plans show floor with concrete pier anchors and support blocking.
  • Floor is sheeted with 3/4" regular plywood but can be pressure treated plywood. This can be covered with the flooring of your choice such as Luxury vinyl tile after also applying a smoother finished underlayment.
  • You have the option of going with a concrete shed floor if desired.

Shed Walls

  • 2x4 wall framing spaced 16" on center with 7' 10" interior wall height.
  • Siding shown with plans is 7/16" LP Smartside siding panels. You may use lap siding if preferred buy must first cover wall framing with 1/2" osb or plywood first.  This is not shown in the plans.
  • Use cedar trim, pvc trim, or trim of your choice.  Plans show white trim on roof and corners and door trim.
  • 36" Pre-hung exterior entry door
  • 3 'new construction' slider windows 3'x4'.  These can be changed out size wise for whatever size you prefer to use and the style can be different as well.

Shed Roof

  • Gable style roof with an 8/12 Roof pitch.
  • Framed with customer built 2x4 framed gable trusses spaced 24" on center.
  • Roof sheeted with 7/16" osb or plywood sheeting. Plans show shingled roof with option of using 3-tab or dimensional shingles.


  • Loft/ceiling joists are 2x8's spaced 24" on center.
  • Loft floor sheeted with 3/4" plywood sheeting but may be 3/4" OSB.

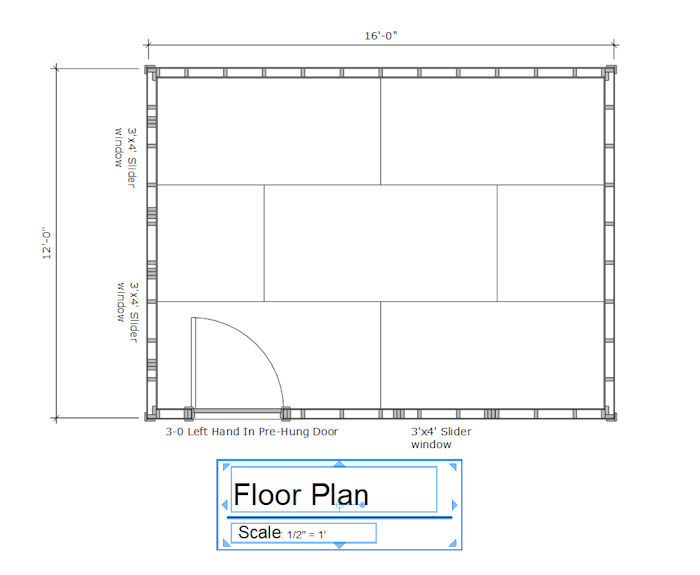

12x16 office shed floor plan 700

Getting a permit:

I always recommend getting a building permit with any of my shed plans.  If your building department requires an engineers stamp for the approval of getting a permit, then you will have to submit the plans to a local structural engineer.  I do not provide those calculations with my plans.

What you will get with your shed plan download:

12x16 office shed blueprint page 24 Pages of Professionally Drawn Building Blueprints
